Matic SP
Compact front-loading beam saw with 20 HP main motor, servo-driven 9-gripper pusher, and up to 149.6″ cut line — the productive workhorse for shops that demand precision in a smaller footprint.
Compact Power.
Industrial Precision.

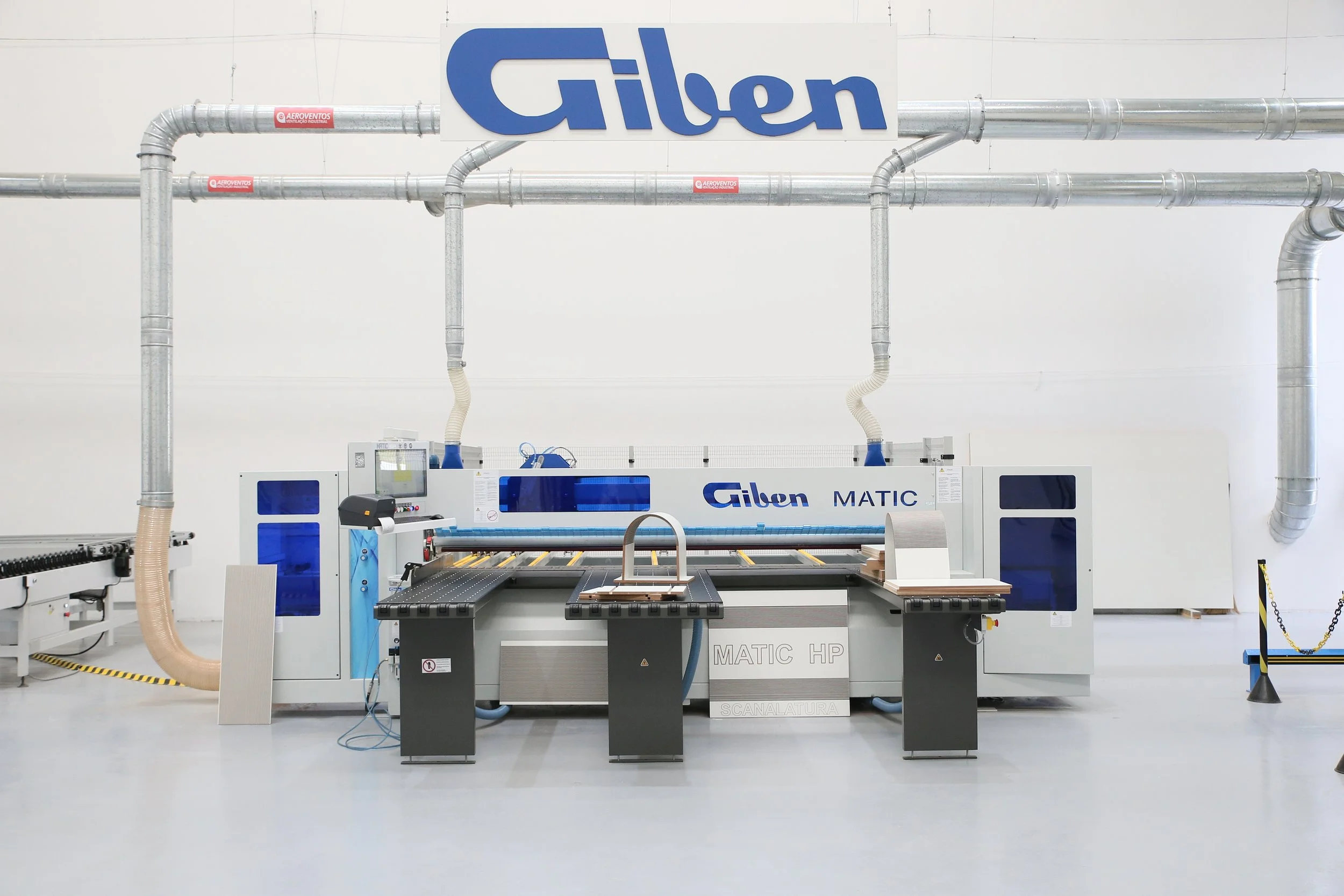

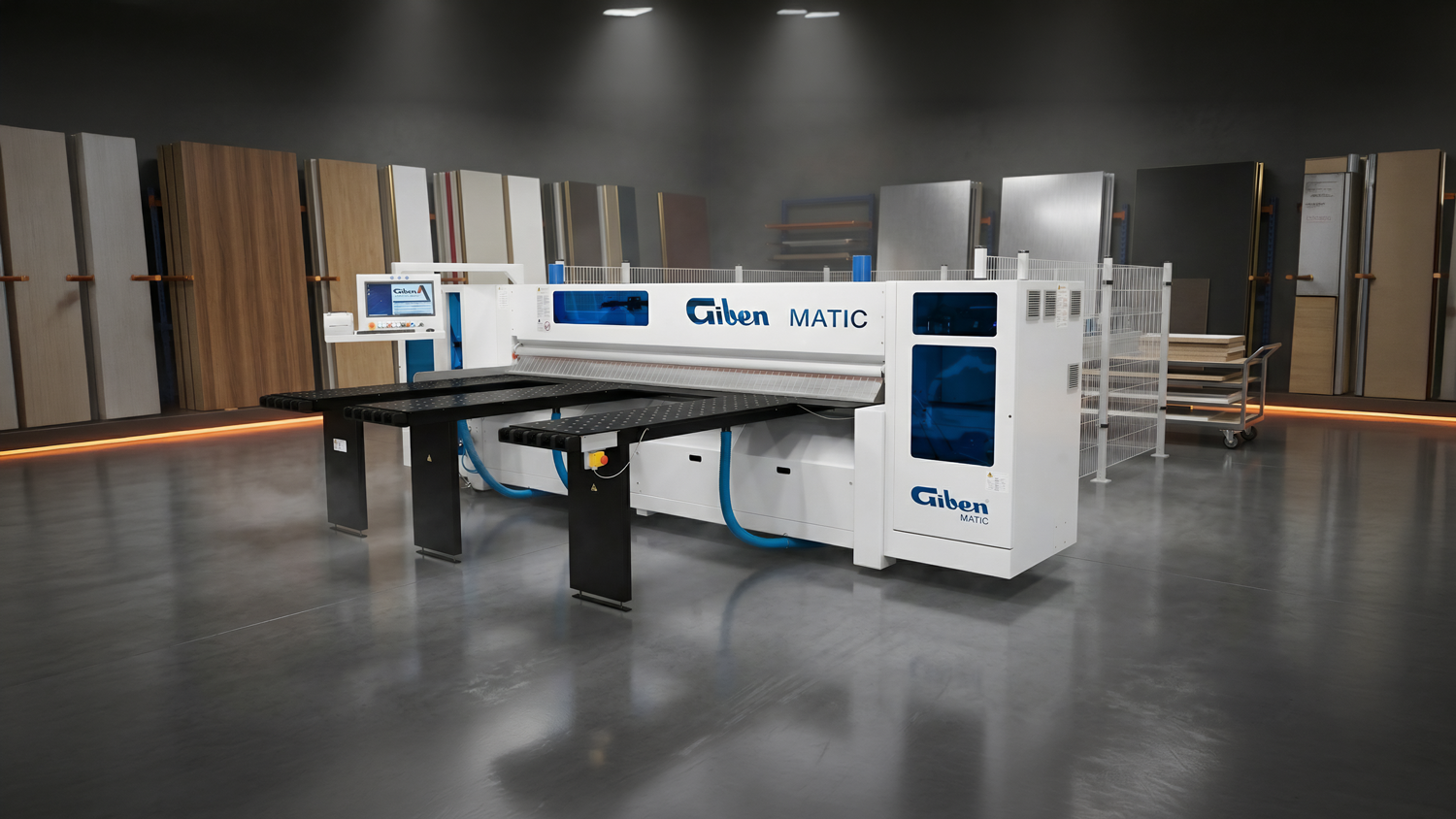

The Matic SP H90 is a front-loading beam saw built for shops that need professional-grade panel processing without the rear-loading footprint. A 20 HP main motor drives the Ø380mm blade through stacks at speeds up to 100 m/min, while the servo-driven 9-gripper pusher delivers ±0.2mm positioning accuracy across a 2900mm pusher length. The G-Vision XP controller running on Windows with a 20″ industrial display provides intuitive cut optimization and label printing. Free lifetime remote diagnostics and phone support are included from day one.
Two Sizes. One Standard.
Choose the cut length that fits your production. Both models share the same engineering, controls, and Giben quality — only the cut capacity changes.
Engineered for Every Cut.
From frame to finish, every system on the Matic SP is built around accuracy, repeatability, and operator efficiency.
Welded Steel Frame
Heavy-duty steel weldment provides the rigid foundation needed to maintain cut accuracy under continuous production loads.

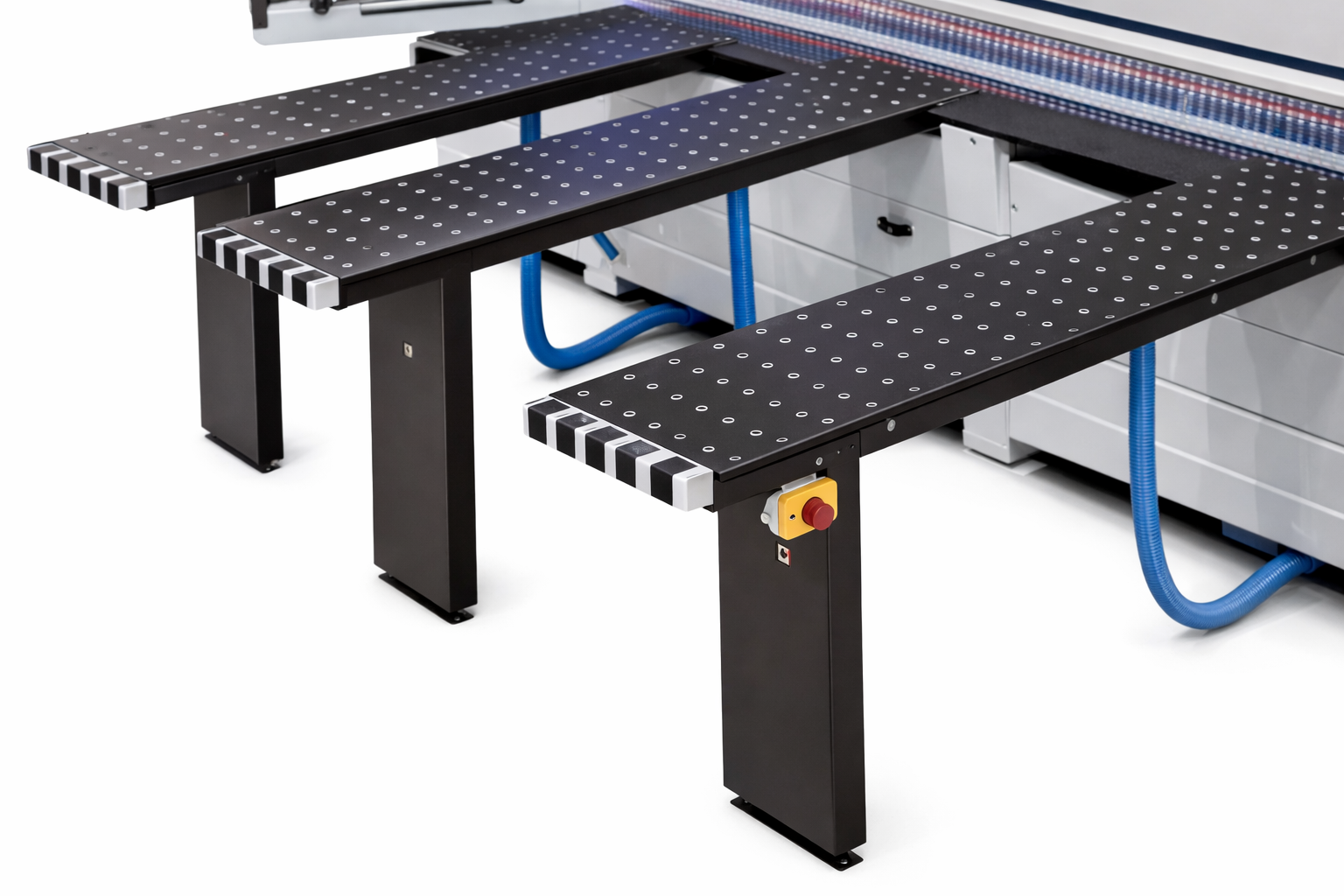

Air Tables
Three 2000 x 510mm floating air tables plus a 2000 x 800mm work table at 890mm working height for frictionless panel handling and corner-mounted start cycle.

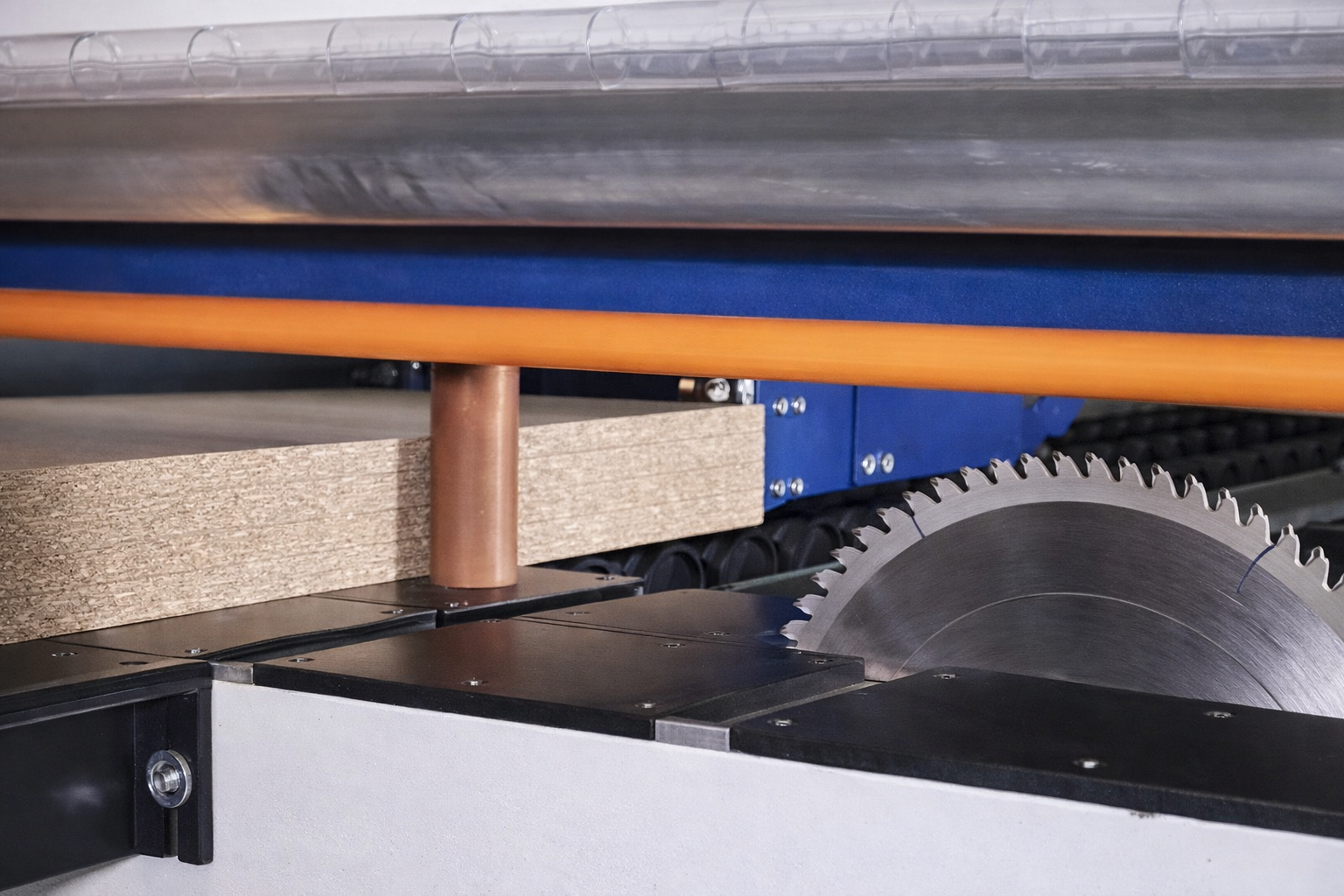

Dual Side Aligner
Motorized dual-alignment system with simultaneous positioning from 40mm to 2200mm — squares every panel before the cut.

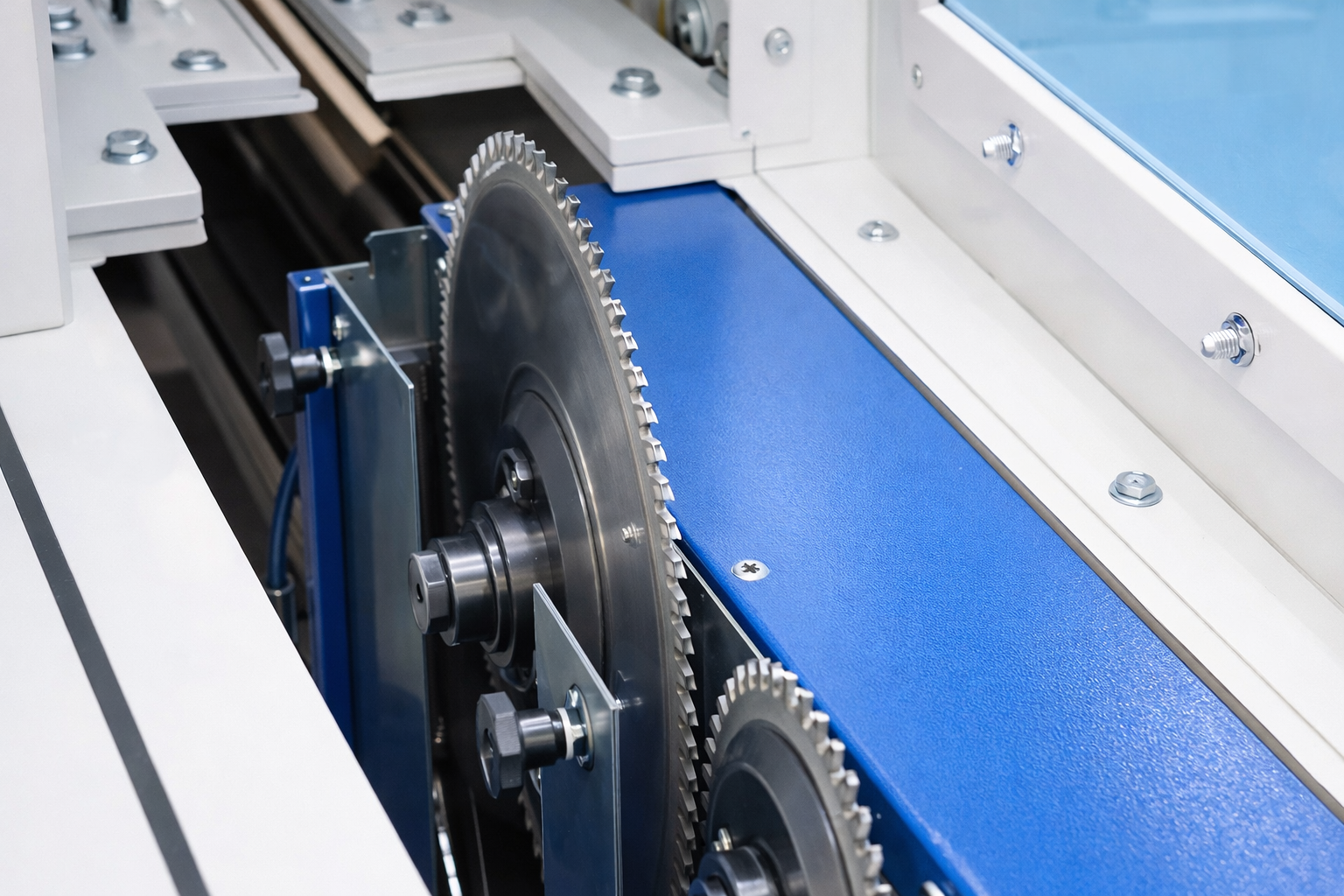

Saw Carriage
Belt-driven servo carriage on Ø35 precision steel guides with four 90mm rollers, automatic positioning, and external scoring blade adjustment.
Servo Pusher
9-gripper rack & pinion pusher driven by servo motor. Feed speed 5–25 m/min, return at 80 m/min, with ±0.2mm positioning accuracy.
Single Pressure Beam
Single-structure pressure beam with gravity-assisted, exhaust-enhanced gap closure system for clean dust extraction and stack security.
G-Lock Quick Change
G-Lock quick blade change system pairs with automatic saw height control for fast, repeatable blade swaps and consistent cut quality.

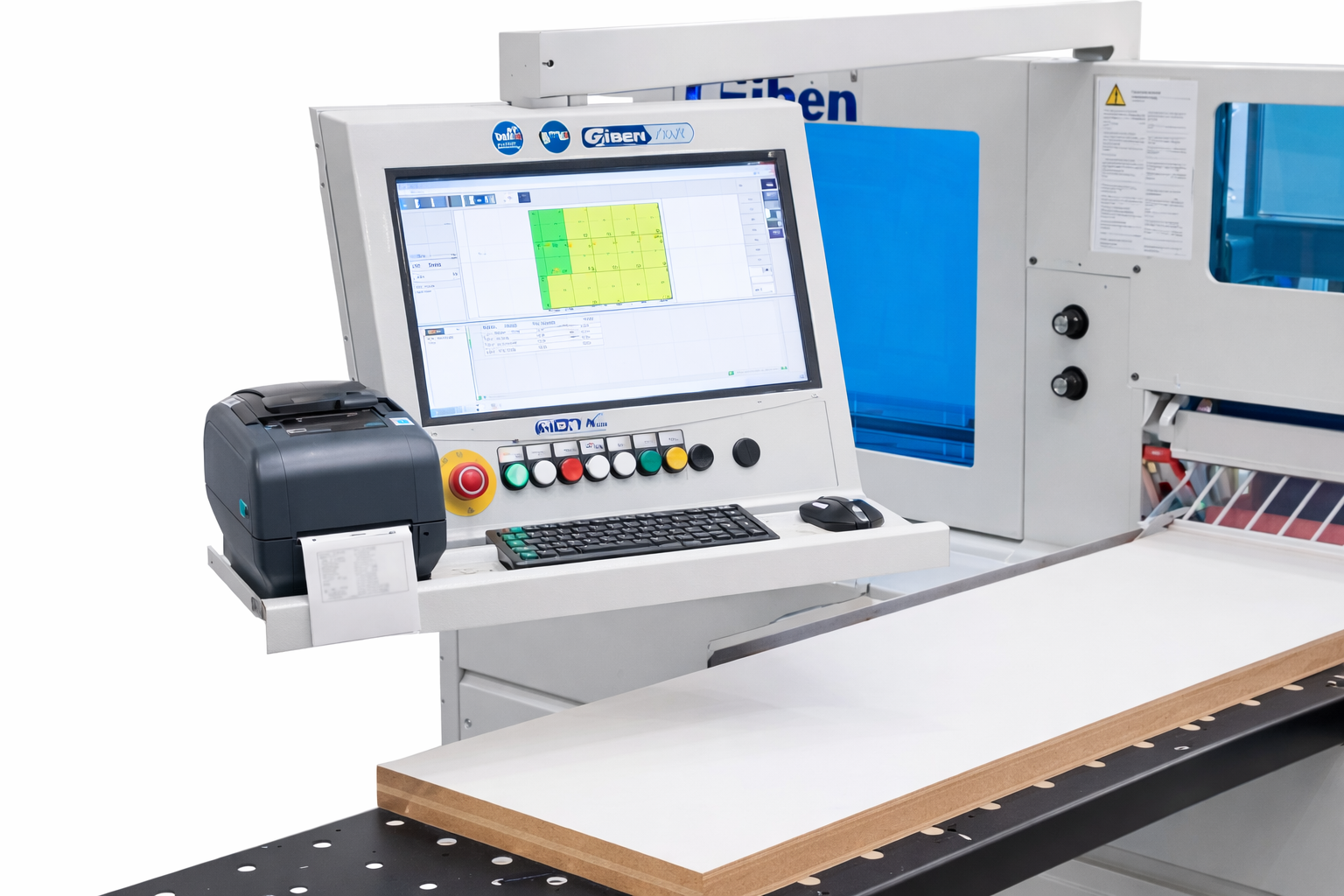

G-Vision XP Controller
Industrial PC with 20″ display running Windows. Cut optimization, label printing, and free lifetime remote diagnostics included.
Ready to Upgrade Your Cut Line?
Talk to our team about the Matic SP — in stock and ready to ship from our Charlotte warehouse.
